DinBox Router 4G

DinBox Router 4G

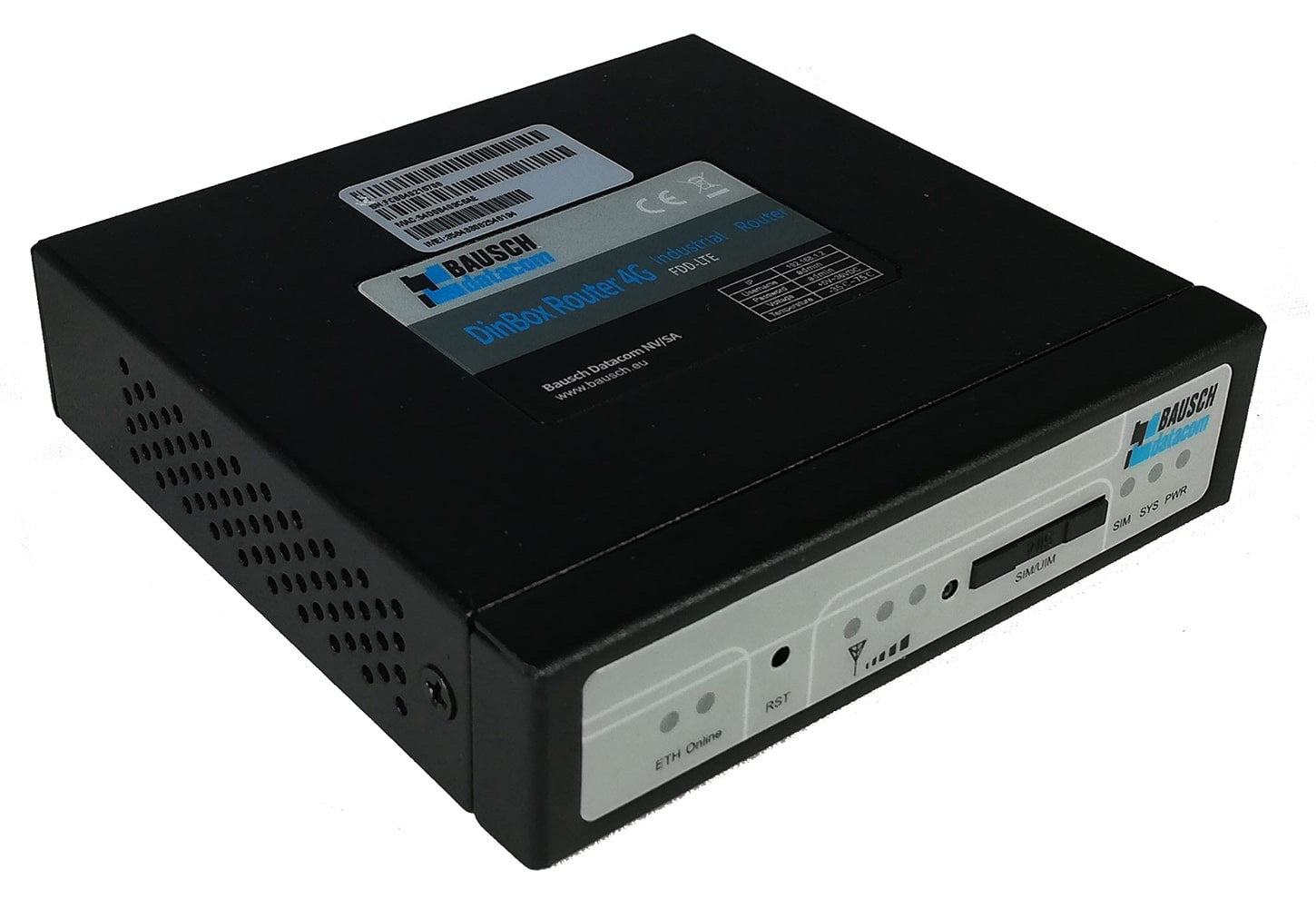

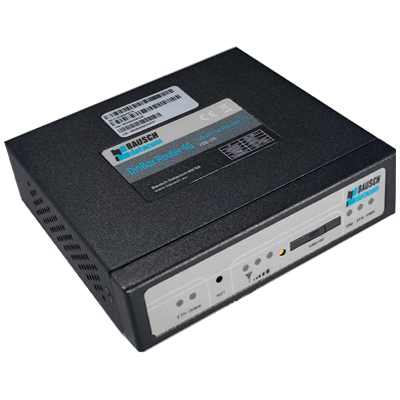

4G Router The DinBox Router 4G is a LTE FDD,LTE TDD,EVDO,WCDMA,TD-SCDMA,CDMA1X, GPRS/EDGE router/cellular terminal device providing data communication functionality. The router has an embedded high-powered industrial 32-bits CPU and a real time operating system and both a RS232 or RS485/RS422 serial communication port and Ethernet port, allowing the transparent connection of existing serial and Ethernet devices to a cellular network. The router can be used in M2M applications, including intelligent transport, industrial automation, telemetry, POS, utilities and others. The product supports VPN client and server (IPsec) and also local and remote firmware upgrades, along with import and export of configuration files. Other features are e.g. an embedded RTC, NTP and even a multiple DDNS provider.

Highlights

  • Features:
    LTE Router Cat.4 / Cat.1 (Roadmap)
    Industrial features: DINrail brace, AC and DC Power Supply possibilities
    Management System optional on demand
  • Applications:
    Routing and VPN IPsec tunneling

Specifications

  • Housing:
    Housing Iron, IP30 protected
    DINrail brace
    Dimensions 100x97x25 mm
    Weight 320g
  • Power supply:
    Standard Power DC 12V/1.5A
    Power range DC 5~36V
    Consumption Communication: 4G:203~290mA@12VDC 3G:172~305mA@12VDC 2G:113~148mA@12VDC
  • Environmental:
    Operating Temperature: -35~+75ºC(-31~+167?)
    Storage Temperature: -40~+85ºC (-40~+185?)
    Operating Humidity 95% ( unfreezing)
  • Engine:
    Standard and Band LTE FDD,LTE TDD,EVDO,WCDMA,TD-SCDMA, CDMA1X,GPRS/EDGE
    Bandwidth LTE FDD: Download speed 100Mbps, Upload speed 50Mbps
    LTE TDD: Download speed 61Mbps, Upload speed 18Mbps
    DC-HSPA+: Download speed 42Mbps, Upload speed 5.76Mbps
    TD-HSPA+: Download speed 4.2Mbps, Upload speed 2.2Mbps
    EVDO Rev. A: Download speed 3.1Mbps, Upload speed 1.8Mbps
    TX power <23dBm
    RX sensitivity <-97dBm
  • Hardware System:
    CPU Industrial 32bits CPU
    FLASH 16MB(Extendable to 64MB)
    DDR2 128MB
  • Reset Restore the router to its original factory default settings
  • Routing and Security:
    Support multiple WAN access methods, including static IP, DHCP, L2TP, PPTP,PPPOE,2.5G/3G/4G
    Support double link backup between Cellular and WAN(PPPOE, ADSL) (optional)
    Support VPN client(PPTP, L2TP, IPSEC and GRE)
    (only for VPN version)
    Support VPN server(PPTP, L2TP, IPSEC and GRE)(only for VPN version)
    Support multiple DDNS provider service
    Support local and remote firmware upgrade,import and export configure file
    Support NTP, RTC embedded
    Support VLAN, MAC Address clone, PPPOE Server
    Support multiple online trigger ways, including SMS, ring and data. Support link disconnection when timeout
    Support APN/VPDN
    Support DHCP server and client, firewall, NAT, DMZ host , URL block, QOS, traffic statistics, real time link speed statistics etc
    Full protocol support , such as TCP/IP, UDP, ICMP, SMTP(optional), HTTP, POP3(optional), OICQ(optional), TELNET, FTP(optional), SNMP, SSHD, etc
    Schedule Online and Offline
  • Interfaces & Connectors:
    Ethernet: 1x 10/100 Mbps Ethernet port (RJ45), auto MDI/MDIX, 1.5KV
    Serial: 1x RS232 (or RS485/RS422) port, 15KV ESD protection / Data bits 5, 6 ,7, 8 / Stop bits 1, 1.5 (optional), 2 / Parity none, even, odd, (space, mark) (optional)
    Baud rate 2400 ~ 115200 bps
    SIM/UIM: Standard 3V / 1.8V user card interface, 15KV ESD protection Power
    Reset: Restores the router to its original factory default settings
  • Contents of the package:
    DinBox LTE Router
    Cellular antenna(s) (Male SMA)
    Network cable
    Console cable
    Power adapter
    Certification: CE
