DinBox PSTN (485)

DinBox PSTN (485)

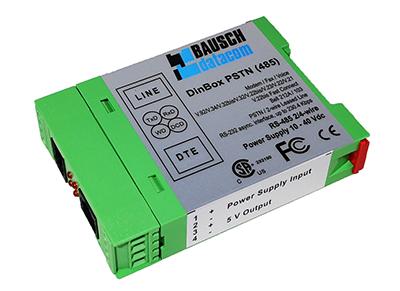

PSTN V.92 Modem The DinBox PSTN 485 is a professional V.92 56K modem designed in a robust 22.5 mm wide DIN-rail housing with a wide range DC power supply (10-40 Vdc). Especially for alarm equipments the modem supports the SIA & Contact ID protocol. The embedded SM_H2 socket Modem with 3kV isolation is based on the well-proven Conexant (Harley 2) technology. Stable operation is guaranteed by the long term watchdog that monitors and automatically resets the modem in case of malfunction. The modem has a RS-232 and RS-485 2 and 4-wire interface. For security reasons it supports selective Caller ID answering with disabled automatic answering (ATS0=0). Firmware adaptations according to your specifications are possible on demand.

Highlights

  • Features:
    SIA & Contact ID Alarm Transmitter
    Industrial DINrail housing
    PSTN V.92 modem
    Wide range DC power supply (10-40Vdc) with Watchdog circuit
    RS-232 serial interface
    RS-485 (2-4 wire) serial interface
    Secured: Caller ID detect and answering
    Distinctive ring detect
  • Applications:
    Alarm equipments
    Remote reading of utility meters
    Medical applications
    Micro RTU applications
    Vending machine monitoring
    Remote control
    Security alarms
    Measurement instruments
    Surveillance systems
    Point of Sales

Specifications

  • Housing:
    Phoenix EG22,5 ABS DIN rail housing (EG22.5-G/ABS GN + EG22.5-A/ABS GN)
    Dimensions: 22.5 mm x 107.5 mm x 75 mm
  • Environmental:
    -20°C / + 55°C
    10% - 75% (non condensing)
  • Power Supply:
    Power supply Input voltage range: 10-40 Vdc regulated
    Typical power consumption : 150 mA (Max., operating on-line)
    Low power consumption
  • Engine:
    V.92 SM-H2 socket modem inside, Conexant - Harley 2 - based
    Modem & Alarm transmitter with embedded SIA & Contact ID protocol
    3 kV isolation
    Call Waiting detection
    Flow control and speed buffering: automatic format/speed sensing RS-232/485 serial async interface
    Type I and Type II Caller ID detect
    Call progress, blacklisting
    NVRAM for custom defaults
    Call Waiting detection
    Integrated DAA
    Extension pickup detection
    Digital Line protection
    Line-in-Use detection
    Security: selective caller ID answering possible while automatic answering is disabled (S0=0)
    63 embedded and upgradeable country profiles
  • Modulation and protocols:
    ITU-T V.92 with PCM upstream rates up to 48 kbps, Quick Connect and Modem-on-hold functionality
    V.90,V.34,V.32bis, V.32, V.22bis
    V.22 bis fast connect and V.29 FastPOS
    V.21,Bell 212A, Bell103
    V.23 Reversing,V.23 half-duplex
    V.80 Synchronous Access Mode
    V.17/V.29 Fax Class 1/1.0 and Fax Class 2
    Data compression and error correction:
    V.44 data compression for optimal downloading
    V.42 bis and MNP 5 data compression
    V.42 LAPM and MNP 2-4 error correction
  • Interfaces & Connectors:
    RS-232 serial interface
    2-wire and 4-wire RS-485 interface, connected via the 4 screw contacts
    Serial Asynchronous host interface
  • Certification:
    Standard Compliances Telecom Safety EMC
    ETSI ES 203021-1 V2.1.1 (2005-06) IEC60950-1 compliant design EN55024
    ETSI ES 203021-2 V2.1.1 (2005-06) Use of safety certified components EN55022 class B
    ETSI ES 203021-2 V2.1.1 (2005-06)
    RoHS Compliant

Additional Info

Bausch Datacom, a leading designer and manufacturer of dial-up and wireless modems for Commercial and Industrial Systems has developped a complete family of external and embedded PSTN modems specifically to meet the stringent requirements for the Medical Services, Electricity Metering Industry and Alarm Equipments.
One of these external modems is the DinBox PSTN 485 SIA.
The Bausch DinBox range of modems is specially designed for industrial use offering a DIN-rail housing, embedded firmware and protocols, watchdog security, a wide range DC power supply and automated communication possibilities. The DinBox communication devices are presented in 'pocket size dimensions'.
Inside the DinBox PSTN 485 SIA modem we implemented the Bausch SM_H2 Socket Module. This socket modem is a V.92 (56K) PSTN modem based on Conexant Harley 2 Technology. The module is ideal for embedded medical, metering and alarm applications since it offers very low operating power requirements, a small board space, a worldwide compliance and a 3 kV dielectric withstanding voltage. Specifically for alarm applications it supports the SIA alarm protocol and contact ID.
The DinBox PSTN 485 SIA is a professional V.92 56K modem designed in a robust 22.5 mm wide DIN-rail housing with a wide range DC power supply (10-40 Vdc). Stable operation is guaranteed by the long term watchdog that monitors and automatically resets the modem in case of malfunction. The modem has a RS-232 and RS-485 2 and 4-wire interface. For security reasons it supports selective Caller ID answering with disabled automatic answering (ATS0=0).              The new external Bausch modems with SIA & Contact ID protocol are available in both Serial TTL format (SM_H2) and external DIN-RAIL (DinBox PSTN 485 SIA), DESKTOP (Proxima V.92 SIA) and DIN 43861-2 (InduBox PSTN SIA) format, capable of operating under Windows, Linux or Mac environments. The new Bausch modem family is Safety, Emissions, and Telco compliant to meet most medical, alarm and metering device requirements.
