DinBox GSM M4

DinBox GSM M4

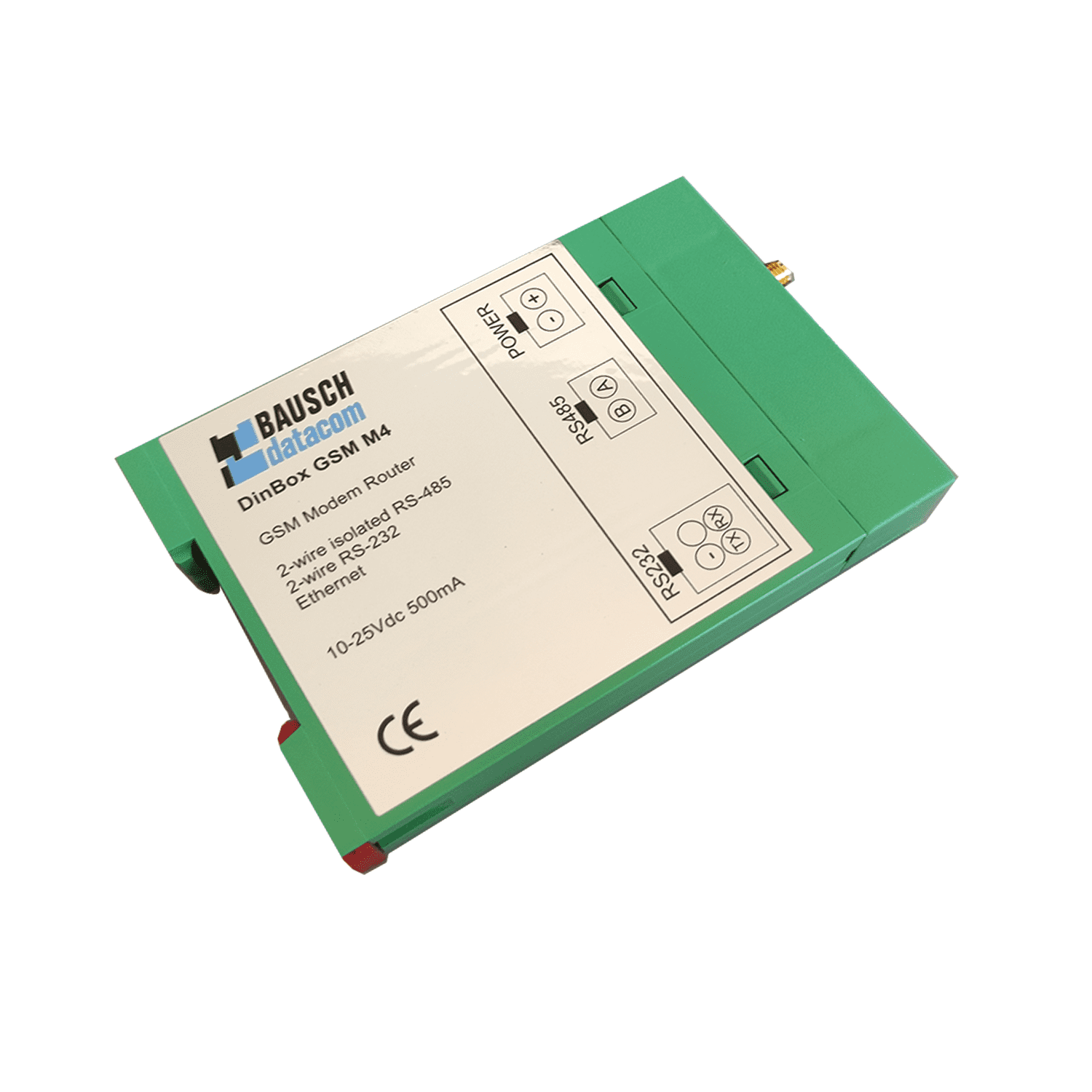

LTE Cat. 1 / GPRS modem router RTU The DinBox GSM M4 modem is a versatile communication device designed to provide a flexible data communication solution for an industrial environment. The DinBox GSM M4 modem contains a number of options to accommodate different communication speeds, power supplies and interfaces. This modem has an extended TCP/IP stack implementation, and is able to connect non-IP devices to an IP network over an Ethernet or WAN link. The modem can also act as SCADA RTU mapping IEC 60870-5-104 objects to Modbus registers. The DinBox GSM M4 is a pocket industrial DINrail modemrouter and RTU. It allows data communication over LTE Cat. 1 for transparant communication with electricity meters, SCADA IEC 60870-5-104/Modbus mapping and routing. The costeffective solution is the ideal tool to integrate non IP devices in your network over 4G.

Highlights

  • Industrial GPRS RS-485 modem
  • Praxis Modem Management
  • Watchdog reset
  • Applications:
    TCP/IP and non TCP/IP meter reading
    CSD Data meter reading

Specifications

  • Dimensions: 107.5x75x22.5mm (LxHxW)
  • Power Supply: 9-25 Vdc
  • User interface: Ethernet Https GUI configuration
  • Communication:
    Option 1: HL7692 – FDE band LTE Cat-1 with dual band GSM/GPRS/EDGE fallback
    Option 2: RC 7620 – LTE Cat. 1 with dual band GSM/GPRS/EDGE fallback
    LTE Cat. M1 NB IOT2 on demand
  • SIM card holder internally
    External antenna on SMA connector
  • Interfaces & Connectors:
    DC Power Supply inlet
    10/100 MB Ethernet
    2 wire RS-485 (isolated)
    3 wire RS-232
    1 status LED
    SMA connector for antenna
  • Environmental:
    Temperature in use: -20°C / + 55°C
    Humidity: 10% - 75% (non-condensing)
  • Engine & Memory:
    ST STM32F4 Cortex-M4 processor
    64KB FRAM [8.192*8bit]
    2Mbit EEPROM [(262.144*8bit]
  • Features:
    TLS security
    Transparant communication: Socket Server & Client
    Routing
    IEC 60870-5-104 / Modbus mapping
    Configuration: local and remote
    Data transfer: MQTT(S) 3.1
    Data transfer: Modbus RTU & Modbus TCP
    Data transfer: IEC 60870-5-104
    Firmware update: local and remote
    RTC
    Graphical User Interface available
    DINrail
  • Certification:
    CE




  • folderDatasheet
  • foldergeneral
  • foldermanuals
    • file_download 20240503 DinBox GSM M4 hardware manual V1.0pre.pdf
